EDI Standard, Transaction Sets Data Segment| EDI 850 Implementation

In this Article, we will cover the basics of EDI, you will get to its x12 format, its transaction sets, its data segments, elements and loops then finally the implementation guideline.

Meaning of EDI

Advantages of Using EDI

Following are Two main advantages of Electronic data interchange.

  • Easy to manage huge volumes of transactions at minimal operating cost.
  • Eliminate mailing delays and data entry errors.

EDI Process

There are two well-defined processes in EDI.

  • Outbound process
  • Inbound process

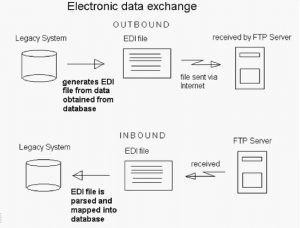

EDI Process - inbound and outboud
EDI Process – inbound and outbound

The outbound process is, when an EDI file gets generated from data out of an existing system and then sent to a trading partner.

Inbound process is, when an EDI file is received from a trading partner and its data gets parsed and mapped into an existing system.

Complete Electronic Data Interchange Knowledge

EDI Format

EDI format
EDI format

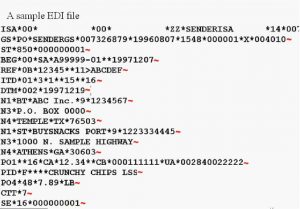

EDI Segment Terminators
EDI Segment Terminators
edi element terminators
EDI element terminators
edi data segments
EDI data segments
edi data elements
EDI data elements

let us now take a closer look at the EDI format. in here we have a sample EDI X – a file as you can see, it is quite cryptic but remember it was designed for a computer to process and not for us to read. The EDI format is made up of data segments. separated by segments terminators, the data segments are made up of data elements separated by element terminators.

Comparison of a Paper Envelope to The Interchange Segment (ISA)

Order of EDI x12 Standard Segments

So the order of the EDI x12 segments goes as follows.

The interchange segments encloses the functional group segments that in turn encloses the transaction set segments.

Order of the EDI x12 Format
Order of the EDI x12 Format

EDI Transaction Sets, Data Segments & Data Elements

A transaction set is basically the document itself. it is made up of data segments and these data segments are sectioned into areas or tables. the heading is area one or table one, the detail is area two or Table two, the summary is area three or Table three. not all transaction sets have all three areas and in fact many do not have the summary section.

Transaction sets are made up of data segments and in turn the data segments are made up of data elements. in this example we have four data elements that are separated by element terminators. element terminators can be of any character but the asterisk is commonly used.

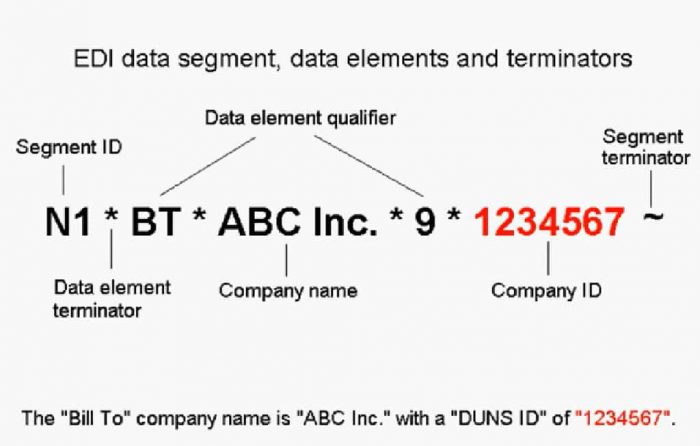

EDI Data Segment, Data Elements and terminators
EDI Data Segment, Data Elements and terminators

At the end of a data segment is the segment Terminator. segment terminators can be of any character or string in this example we use the tilde. some data elements are qualifiers, they hold codes that will describe the values of data elements after them. in this example we have BT that tells us that the element is a bill to company.

The nine tells us that the company ID is using the DUNS identification code. if we were to view a segment as a sentence and the n1 segment would say the bill to company name is ABC Inc with the DUNS ID of one, two, three, four, five, six, seven.

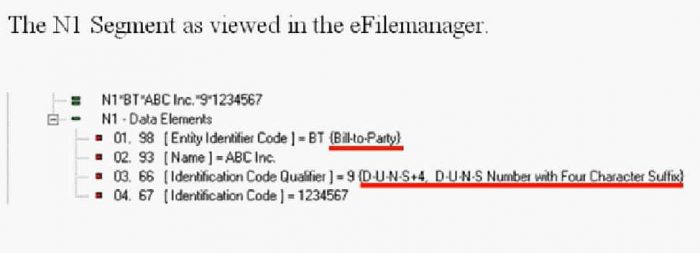

EDI n1 segment viewed in efilemanager
EDI n1 segment viewed in efilemanager

Some view data segments to be like records and their data elements to be like fields. data segments can be viewed better by using the EDI-dev efilemanager. in here we have a section that displays the same in one segment. note how the descriptions of the codes are displayed next to them.

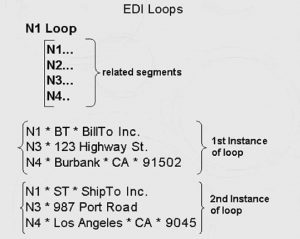

EDI loops

Sometimes Data segments have to be read together to obtain the correct information that is when we use EDI loops to denote such relations. EDI loops are used to keep related segments together, so that together they can convey the correct information. loops also make possible to repeat a group of related segments. in our example we have the n1, n2, n3 and n4 segments in a loop. note how the segment’s depend on each other. here the n3 segment with the street address value does not make sense without the n1 segment telling us that it is a street address of the bill to company.

EDI loops
EDI loops

This example also shows how the loop is used twice to hold two different information of similar format. the first loop holds the billed to address while the second loop holds the ship to address.

The EDI X12 Standard

Even though it is the standard still has many version and transaction sets, the users have to be aware of so as to exchange EDI files successfully. the version number is indicated by its first three digits, the last digit indicates a release. here, the 40 10 and the 40 20 would indicate a major release and the 40 12 would indicate an interim release. changes in their interim releases are included in the next version therefore version 4020 would include the changes that are in the 4012 release.

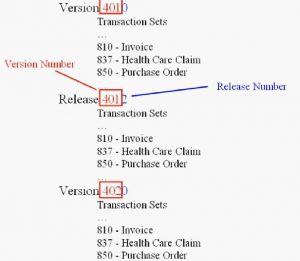

EDI X12 Versions and Transaction Sets
EDI X12 Versions and Transaction Sets

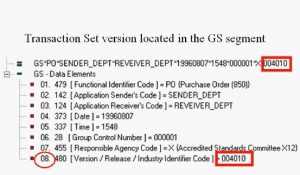

EDI transaction set version located in GS Segment
EDI transaction set version located in GS Segment

The version of a transaction set in an EDI x12 file can be found in the 8th data element of the functional group or GS segment. even when using the same versions of transaction sets, there are still differences in how companies would use them. for example, some data segments and elements may be omitted or the number of times the loop can be used is limited or some code values of an element restricted.

EDI Implementation Guideline

All these rules would be noted in an EDI Implementation guideline.

850 set edi implementation guideline
850 set EDI implementation guideline

here’s an example of an 850 transaction set guideline for a particular company. note that only the segment’s that are being used in the transaction set are displayed and in the required column a data segment that must be used is indicated with an M for mandatory, an O indicates that the segment is optional. the maximum column indicates the maximum number of times the segment can be used.

The ref segment can be used at most two times, the repeat column denotes the maximum times a loop can be repeated. here, the n1 loop can be repeated at most four times.

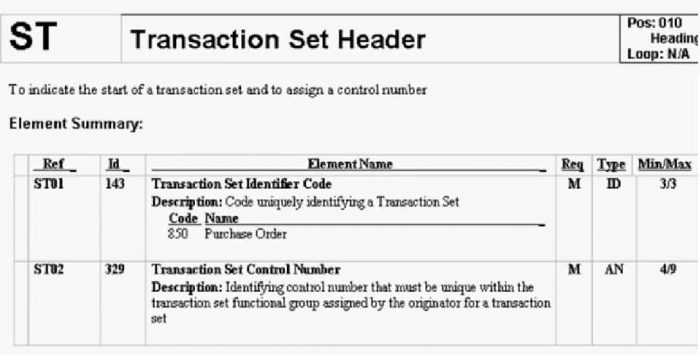

EDI Transaction Set Header
EDI Transaction Set Header

The implementation guideline also has a detailed section for each segment which shows the requirements for each of its elements. in this example we have the ST segment that has two data elements. the first element is allowed to have only the value 850. it is a required element with the length of exactly three characters. the second element should hold a control number for the transaction set, it too is required with a minimum length of four and a maximum length of nine characters.

EDI beginning segment
EDI beginning segment

let us take another example the Beg segment that uses only four of its 12 data elements. the four elements use have the position numbers 1, 2, 3 and 5. The first data element indicates that it can only have the value 0 0. it is a mandatory element with an exact length of two characters. the second data element can only have kE, KN or SA as its value. it too is mandatory with an exact length of two characters. the third data element should contain the purchase order number, it is also mandatory the minimum length of one and a maximum of 22 characters. note that the fourth data element is not being used and that the next data element is a fifth data element. it is a mandatory element and should contain the purchase order date value of 8 characters.

, ,
